need some help modifying a theme to work on a nano

[NWilhelm]

i've scaled down all the images and now im working on the code.  can anyone tell me what i am doing wrong?

%wd
%pb|ProgressBar.bmp|

%X|Background.bmp|
%xl|a|Fastforward.bmp|1|1|
%xl|b|Pause.bmp|1|1|
%xl|c|Play.bmp|1|1|
%xl|e|Rewind.bmp|1|1|
%xl|f|Stop.bmp|1|1|
%xl|h|v1r.bmp|115|32|
%xl|i|v2r.bmp|115|32|
%xl|j|v3r.bmp|115|32|
%xl|k|v4r.bmp|115|32|
%xl|l|v5r.bmp|115|32|
%xl|m|v6r.bmp|115|32|
%xl|n|v7r.bmp|115|32|
%xl|o|v8r.bmp|115|32|
%xl|p|v9r.bmp|115|32|
%xl|q|b0.bmp|158|3|
%xl|r|b1.bmp|158|3|
%xl|s|b2.bmp|158|3|
%xl|t|b3.bmp|158|3|
%xl|u|b4.bmp|158|3|
%?bl<%xdq|%xdr|%xds|%xdt|%xdu>
%?mp<%xdf|%xdc|%xdb|%xda|%xde>
%?pv<|%xdh|%xdi|%xdj|%xdk|%xdl|%xdm|%xdn|%xdo|%xdp|%xdp>


%al  %pc  %ac                 %ar%pt

%s%ac%?ia<%ia|Artist Unknown>
%s%ac%?id<%id|Album Unknown>
%s%ac%?it<%it|Title Unknown>
%pb|11|37|136|


%s%ac%?Ia<%Ia|Artist Unknown>
%s%ac%?It<%It|Title Unknown>





if you guys need any more info just ask.  thanks.

[BdN3504]

run the wps debug mode with the sim and post the outcome.
from now i can tell that your use of the progress bar tag is outdated.
delete

Code: [Select]

%pb|ProgressBar.bmp|

and modify this line

Code: [Select]

%pb|11|37|136|

to something like this

Code: [Select]

%pb|ProgressBar.bmp|37|-|99|11|

[NWilhelm]

run the wps debug mode with the sim and post the outcome.
from now i can tell that your use of the progress bar tag is outdated.
delete

Code: [Select]

%pb|ProgressBar.bmp|

and modify this line

Code: [Select]

%pb|11|37|136|

to something like this

Code: [Select]

%pb|ProgressBar.bmp|37|-|99|11|

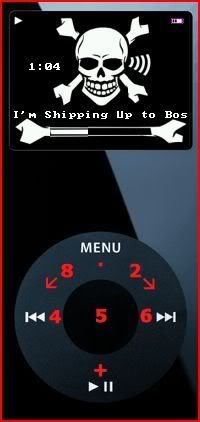

Thanks man.  I got the sim and was able to work the kinks out from there.  If anybody wants me to give them the theme it works on the nano.  Here's a screenshot:

[Chronon]

If the original theme does not have a permissive license then you probably shouldn't distribute a fixed version of it.  You are free to tell people what they need to change, however.

[NWilhelm]

alright. thanks for the advice

[soap]

Or you could do the detective work to chase down the original author, and beat them over the head.
